Category Overview
Flexible Robotic Welding Systems integrate multi-axis articulated robots, synchronized positioners, adaptive laser seam-tracking sensors, and digital welding power sources into modular turnkey cells. Designed to replace manual welding or rigid dedicated automation for high-mix, variable-volume production. Features standardized structural bases, offline programming (OLP) compatibility, and closed-loop monitoring to maintain joint integrity across frequent product changeovers.
-
![Flexible Welding System For Small-Batch Production]()
Flexible Welding System For Small-Batch ProductionThe Chuanglida Intelligent Equipment Flexible Welding System is engineered for high-mix, low-volume (HMLV) manufacturing environments. Unlike fixed-tooling automated cells, this system utilizes a... -
![Quick-Change Robotic Welding System]()

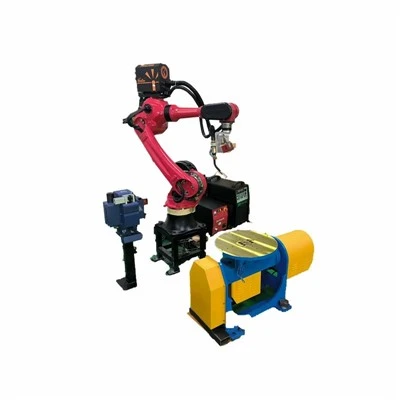

Quick-Change Robotic Welding SystemThe Chuanglida Intelligent Equipment Quick-Change Robotic Welding System enables automated end-effector swapping for industrial robots in high-duty-cycle cells. -
![Multi-Product Robotic Welding System]()
Multi-Product Robotic Welding SystemThe Borunstech Multi-Product Robotic Welding System is an integrated automation cell engineered for manufacturers processing high-mix, variable-geometry metal components. -
![Flexible Welding Automation System]()
Flexible Welding Automation SystemThe Boruntestech Flexible Welding Automation System integrates multi-axis mechanical manipulators, programmable motion controllers, and precision adaptive welding power sources into a modular... -
![Flexible Robotic Welding Cell]()
Flexible Robotic Welding CellThe Borunts Tech Flexible Robotic Welding Cell is a pre-configured, skid-mounted automated welding system for structural carbon steel, stainless steel, and aluminum components. -
![Flexible MIG Welding System]()
Flexible MIG Welding SystemThe Borunstech Flexible MIG Welding System is engineered for automated and semi-automated production lines requiring precise arc control across complex joint geometries. Its modular architecture...
↵
Product Range
|
Series |
Primary Architecture |
Max Payload |
Typical Application |
|
BR-FRW-600 |
Floor-mounted 6-axis robot + dual H-frame positioner |
6 to 12 kg |
Automotive brackets, electrical enclosures, precision sub-assemblies |
|
BR-FRW-1500 |
Articulated robot + motorized drop-center positioner |
16 to 50 kg |
Structural machinery frames, agricultural chassis, pressure vessels |
|
BR-FRW-GTR |
Gantry-mounted multi-robot layout + synchronized rail positioners |
Up to 210 kg |
Long structural beams, commercial vehicle frames, oversized weldments |
Technical Specifications
|
Specification |
Details |
|
Robot Manipulator |
6-axis articulated arm; pose repeatability +/-0.05 mm to +/-0.08 mm. |
|
Power Sources |
Compatible with Fronius TPS/i, Miller Auto-Continuum, and Lincoln Power Wave; digital communication via EtherCAT or Profinet; 350A to 500A output at 100% duty cycle. |
|
Seam Tracking |
Laser triangulation seam finder and real-time arc-tracking modules; joint tracking correction bandwidth up to 50 Hz. |
|
Positioner Axis |
Synchronized servo-driven L-type, horizontal/vertical turntable, or headstock-tailstock configurations; payload capacities from 500 kg to 5,000 kg. |
|
Control Architecture |
PLC-based safety controller with industrial teach pendant; protocol support for Ethernet/IP, Profibus, and DeviceNet. |
|
Utility Requirements |
380V to 480V AC, 3-phase, 50/60Hz; clean compressed air at 0.6 MPa to 0.8 MPa. |
Key Features
Adaptive Seam Tracking
Compensates dynamically for thermal distortion and part fit-up variation during welding without manual path reprogramming.
Synchronized Motion
Multi-axis kinematic integration locks robot torch movement with positioner rotation to maintain optimal gun angle and constant travel speed on 3D contours.
Modular Cell Layout
Base frames, safety fencing, and pneumatic clamping fixtures built on standardized T-slot sub-bases, enabling mechanical reconfiguration for new part variants in under 4 hours.
Closed-Loop Logging
Records real-time arc voltage, current, wire feed speed, and shielding gas flow per weld seam for traceability and quality auditing.
Applications
Commercial Vehicle & Automotive: Chassis crossmembers, axle housings, seat frames, and suspension links requiring continuous GMAW.
Construction & Agricultural Machinery: Loader booms, excavator structural arms, and tractor frames constructed from 6 mm to 25 mm plate steel.
Energy & Pressure Equipment: Stainless steel and carbon steel cylindrical tanks, pipeline flanges, and wind turbine brackets requiring penetration control.
General Industrial Fabrication: Custom machine frames, material handling racks, and stainless steel enclosures requiring clean fillet and butt welds.
Optional Equipment & Integration
Laser Hybrid Heads
Combines fiber laser optics with GMAW for deep penetration, high travel speeds, and minimal heat-affected zones (HAZ) on thick materials.
Offline Programming (OLP)
CAD-to-path generation suite compatible with major platforms for collision detection, reach analysis, and cycle time simulation.
Vision Verification
Wrist-mounted or cell-fixed 2D/3D machine vision cameras to verify component presence, orientation, and engineering revision before arc ignition.
Fume Extraction
Integrated canopy hoods or ducted robotic arm extraction systems complying with occupational ventilation limits.
Customization
Reach Extension
Extended-rail robot bases and overhead gantry trusses for oversized workpieces.
Tooling
Custom hydraulic or pneumatic quick-change clamping fixtures engineered from customer STEP files.
MES Integration
Direct connection to factory manufacturing execution systems via OPC-UA protocols.
Specialized Welding
Dual-wire push-pull feed systems and shielding gas mixing manifolds optimized for aluminum alloy fabrication.
Manufacturing & Quality Control
Thermal Annealing & Machining
Cell base frames undergo stress-relieving thermal annealing, followed by finish-machining on heavy-duty CNC floor borers to guarantee mounting surface flatness within 0.05 mm/m.
Electrical Assembly
Control cabinets wired to IP54/IP65 standards using numbered ferrules, shielded cables, and industrial terminal blocks.
Factory Acceptance Testing (FAT)
Systems undergo a 72-hour continuous dry-run cycle test followed by live test-welding using customer raw material coupons. CMM inspection and destructive macro-etch section tests verify internal penetration and repeatability before shipment.
Standards & Safety
Safety Compliance
Fully compliant with ISO 10218-1/2 (Robots and robotic devices — Safety requirements) and ANSI/RIA R15.06.
Safety Integrity
Category 3, Performance Level d (PLd) architecture featuring dual-channel safety PLC monitoring, optical light curtains, emergency stop pull cords, and interlocked access gates.
Welding Standards
Process capabilities support compliance with AWS D1.1 (Structural Welding Code - Steel) and ISO 3834 (Quality requirements for fusion welding).
Why Choose Us
In-House Integration
Complete mechanical fabrication, electrical panel wiring, PLC programming, and robot cell integration executed within our 35,000 square meter production facility without third-party outsourcing.
Transparent Documentation
Comprehensive mechanical drawings, electrical schematics, PLC register maps, and kinematic models supplied with every delivery package.
Engineering Support
Direct access to senior robotics and welding application engineers for remote diagnostics, ladder logic troubleshooting, and weld process optimization.
FAQ
As one of the most professional flexible robotic welding systems manufacturers and suppliers in China, we also support customized service. Please feel free to buy discount flexible robotic welding systems in stock here from our factory. For price consultation, contact us.
