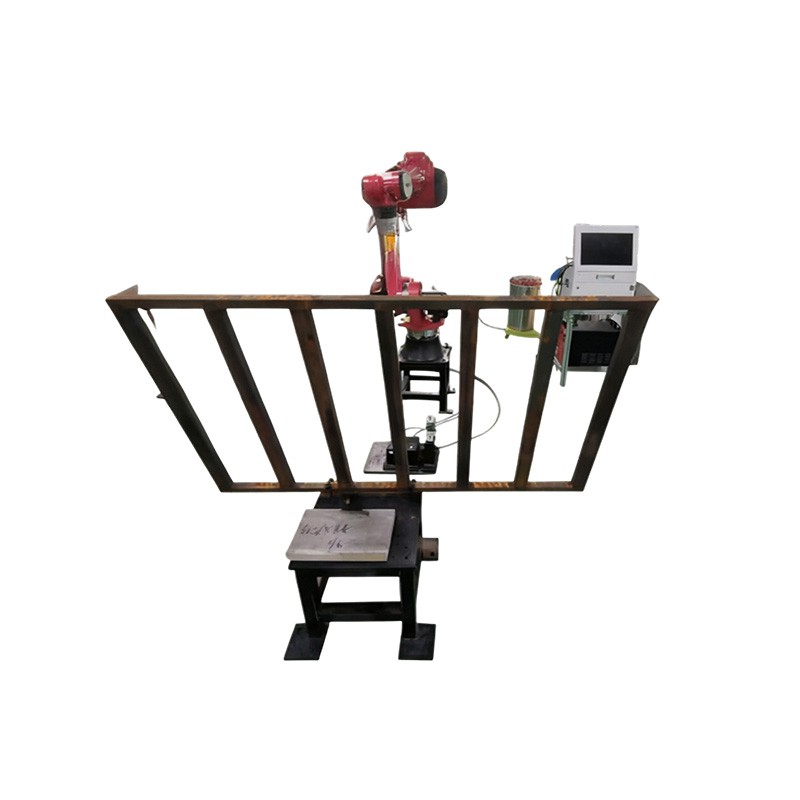

Spray Coating Robot for Automated Powder Coating Lines
Our spray coating robot is used for automated powder coating of metal, plastic, and composite workpieces. It can be integrated into coating production lines requiring repeatable spraying paths and controllable coating parameters.
Advantages
- ±0.05 mm repeat positioning for repeatable coating paths
- 2131 mm arm reach for large workpiece coverage
- Program-free teaching system for faster product switching
- Stable powder feeding for long-cycle batch production
- Compatible with conveyor and rotary platform integration
- Supports continuous coating operation in fixed production layouts
- 10 kg payload supports electrostatic spray assemblies and cable routing without affecting motion stability
System Structure Configuration
- 6-axis industrial robotic arm
- Electrostatic spray gun assembly
- Powder supply and feeding system
- Teaching pendant for trajectory recording
- Control cabinet (motion control + electrical system)
- Fixed workbench or fixture platform
Main Technical Parameters
|
Parameter |
Specification |
|
Arm Span |
2131 mm |
|
Repeat Positioning Accuracy |
±0.05 mm |
|
Maximum Load |
10 kg |
|
Power Capacity |
6.48 kVA |
|
Equipment Weight |
Approx. 230 kg |
|
Protection Class |
Wrist: IP54, Body: IP40 |
Applicable Production Conditions
The equipment is typically used in the following production setups:
- Powder coating lines for metal structural parts
- Surface finishing lines for household appliance housings
- Industrial furniture coating processes
- Aluminum profile coating lines
- General industrial metal part surface treatment lines
Material and Coating Compatibility
The system is compatible with the following workpiece materials:
- Cold-rolled steel
- Galvanized steel
- Aluminum alloy (e.g., 6063 profiles)
- ABS / PC plastics
- MDF and engineered wood surfaces
Compatible powder coating types include:
- Epoxy powder coatings
- Polyester powder coatings
- Fluorocarbon powder coatings
- Functional coatings (anti-corrosion / weather-resistant / decorative finishes)
Project Configuration Support
System configuration can be adjusted based on:
- Workpiece dimensions and geometry
- Production capacity requirements
- Coating material type
- Existing line layout
- Automation integration method
For quotation and technical evaluation, the following information is typically required:
- Workpiece drawings or photos
- Expected production capacity
- Coating process requirements
- Existing production line conditions
- Preferred integration method
Application Fields and Compatible Materials
| Application Field | Typical Objects | Compatible Materials & Powder Types |
|---|---|---|
| Home Appliance | Refrigerator/washing machine casings, air conditioner units, microwave liners, rice cooker bases | Cold-rolled steel, ABS, PC/ABS; Epoxy powder, Polyester powder |
| Furniture & Home Furnishing | Furniture panels (metal/wood), wardrobe frames, drawer slides, door handles, bathroom hardware | Galvanized steel, solid wood, MDF; Matte polyester powder, Wood grain transfer powder, Antibacterial powder |
| Building & Decoration | Aluminum door/window profiles, curtain wall panels, fire door frames, metal ceiling panels | 6063 aluminum, galvanized steel, color steel; Weather-resistant polyester powder, Fluorocarbon (UV-resistant), Stone-like powder |

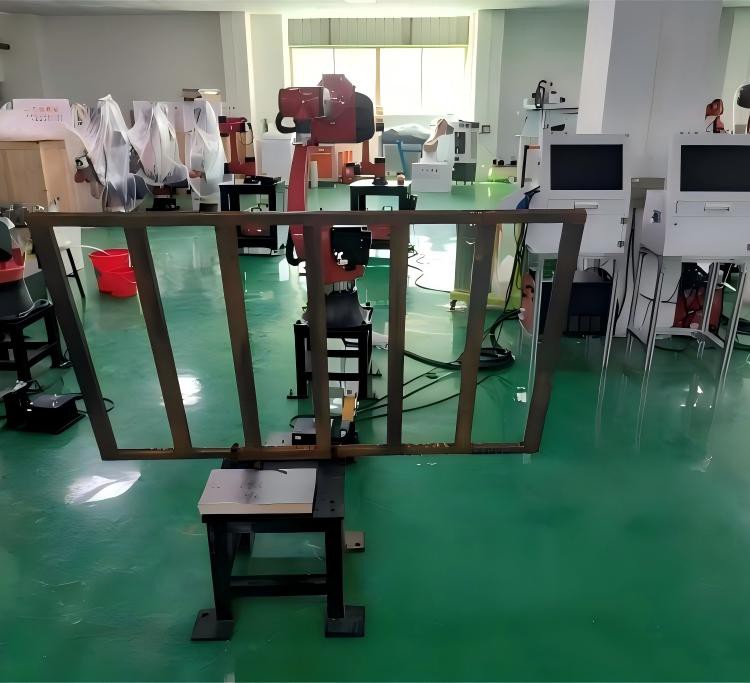

On-Site Simulation and Structural Close-Up Display

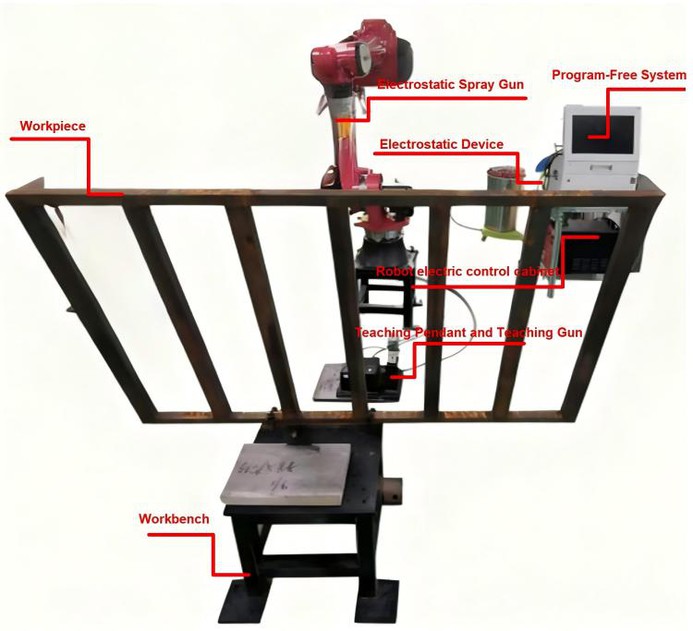

Figure 2.1 On-site Physical Object Diagram

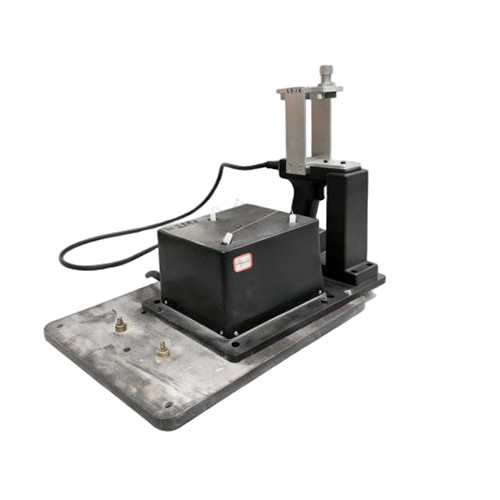

Teaching Pendant and Teaching Gun
Electrostatic Spray Gun

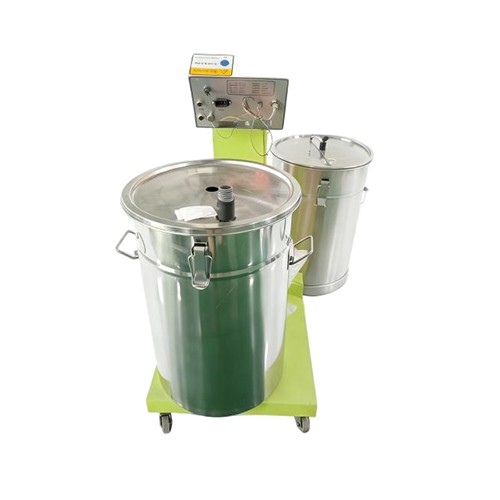

Electrostatic Sprayer
Program-Free System

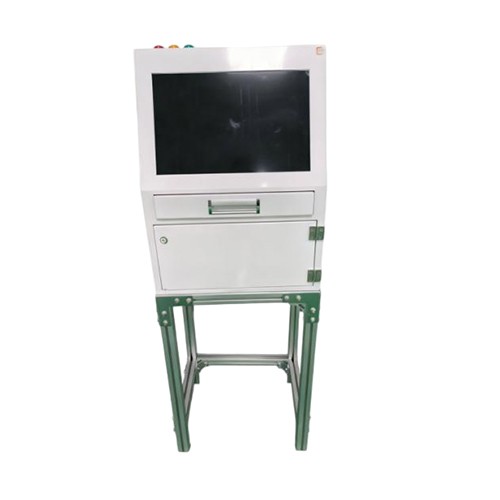

Robot electric control cabinet
Elevated Fixing Base/Workbench
