Introduction

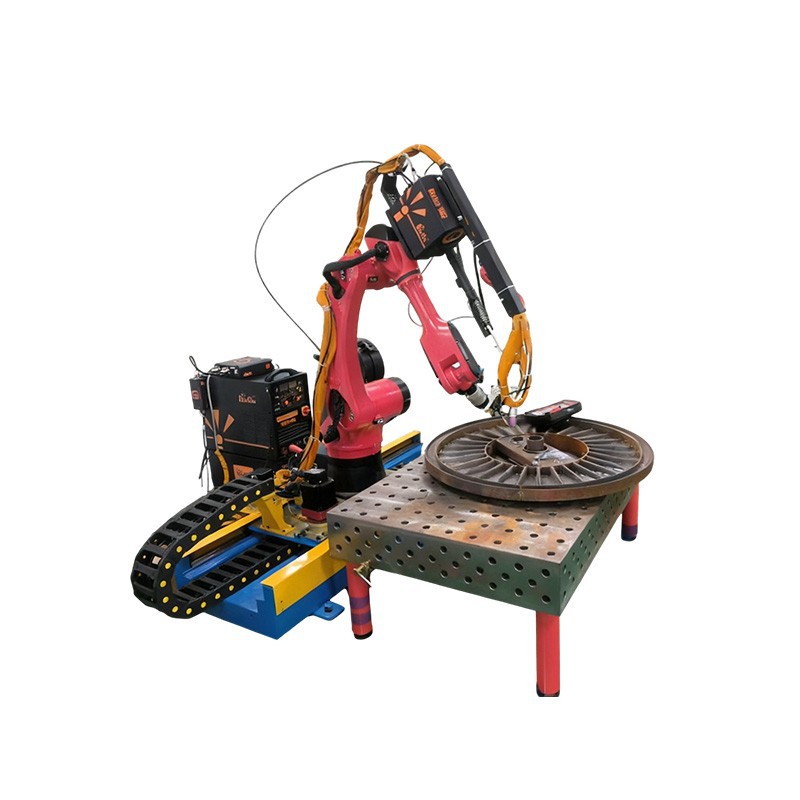

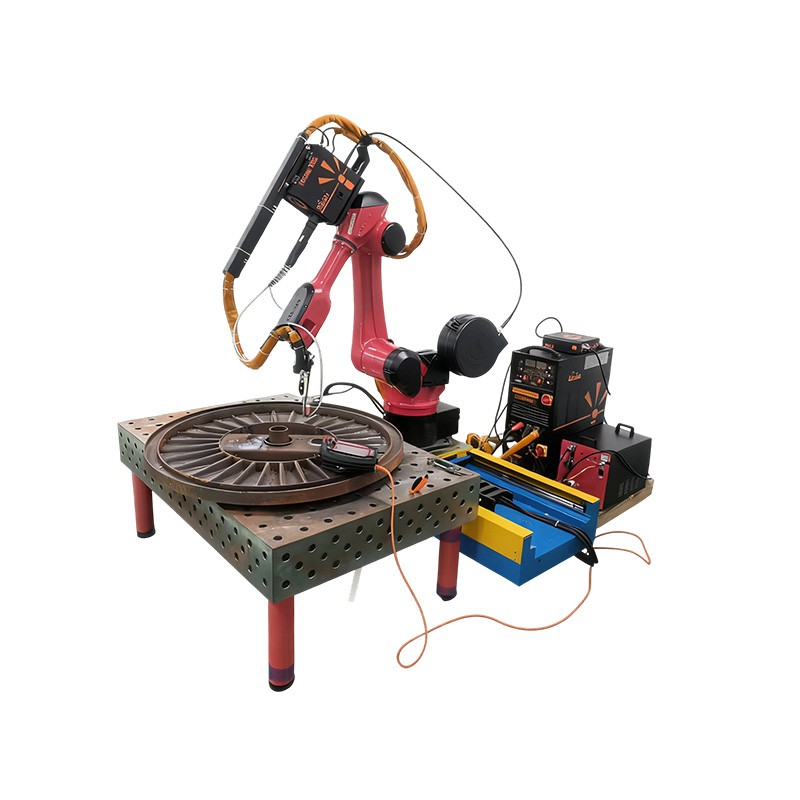

Argon Arc Welding Robot delivering consistent, high-quality welds on stainless steel, aluminum, and low-carbon steel components. Suitable for high-volume production and repeatable welding, they can be applied flexibly across industries such as automotive, hardware, and sheet metal processing.
Key Advantages

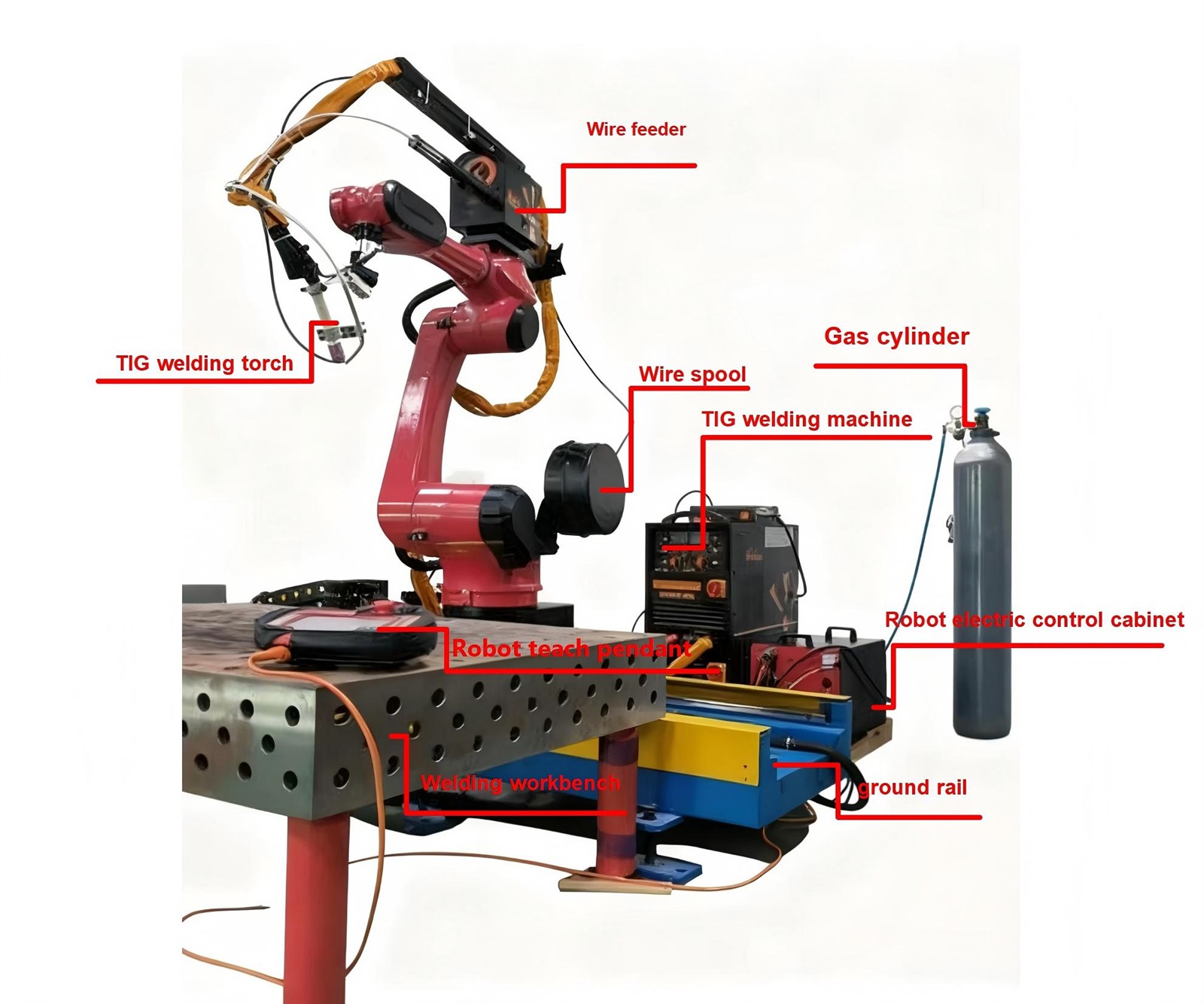

- High-precision TIG (Argon Arc) seam welding with automatic wire feeding
- 1587 mm arm span integrated with a ground rail for extended workpiece coverage
- Continuous production capabilities for 8- to 24-hour shift cycles
- Minimal heat-affected zone (HAZ) to prevent thin-sheet warping and burn-through
- Compatible with assembly jigs, modular clamps, and multi-station fixtures
Main Technical Parameters
| Parameter Category | Specific Specification |
| Robot Model |
BRTIRUS1510A 6-Axis Robot |
| Robot Arm Span |
1587 mm |
| Repeat Positioning Accuracy |
+/-0.05 mm |
| Maximum Load (Payload) |
10 kg |
| Power Capacity |
5.06 kVA |
| Equipment Weight |
Approx. 152 kg (Robot Body) |
| Protection Class |
Wrist: IP54; Body: IP50 |
| Motion Range (J1 - J6) |
J1: +/-165 deg, J2: -95 deg / +70 deg, J3: -85 deg / +75 deg, J4: +/-180 deg, J5: +/-115 deg, J6: +/-360 deg |
| Max Axis Speed |
J1: 190 deg/s, J2: 173 deg/s, J3: 223 deg/s, J4: 254 deg/s, J5: 270 deg/s, J6: 342 deg/s |
| Base Mounting Pattern |
310 x 290 mm pattern (4 x 10 mm thru-holes) |
| Tool Flange Interface |
6 x M6 tapped holes (12 mm depth), 44 mm PCD |
Part Capacity & Fixture Compatibility
Component Size & Envelope: Supports part lengths beyond 1.5 m when traversing on the linear ground rail, with up to 10 kg payload capacities.
Fixture Types: Standard jigs, modular 3D welding tables, pneumatic clamps, and custom welding positioners supported.
Multi-Station Operation: The ground rail configuration allows dual-station layouts, enabling operators to load/unload parts on Station B while the robot welds on Station A.
Industry Applications & Materials
| Industry | Typical Use | Compatible Materials |
| Automotive | Exhaust pipes, chassis brackets, wheel hubs, fluid lines | Stainless steel, aluminum, low-carbon steel |
| Hardware Manufacturing | Brackets, tubular frames, machine housings | Carbon steel, aluminum alloys |
| Sheet Metal Fabrication | Medical cabinets, electrical enclosures, equipment casings | Low-alloy steel, stainless steel, thin aluminum sheets |
Compliance & Operational Requirements
Safety Compliance: Designed in accordance with standard industrial machinery safety protocols, featuring dual-channel emergency stop circuits.
Operating Conditions: Operates in standard indoor shop-floor environments with dry compressed air and pure Argon shielding gas supply.
Mounting Foundation: Secure floor mounting required for both the welding table and the linear ground rail tracks.
