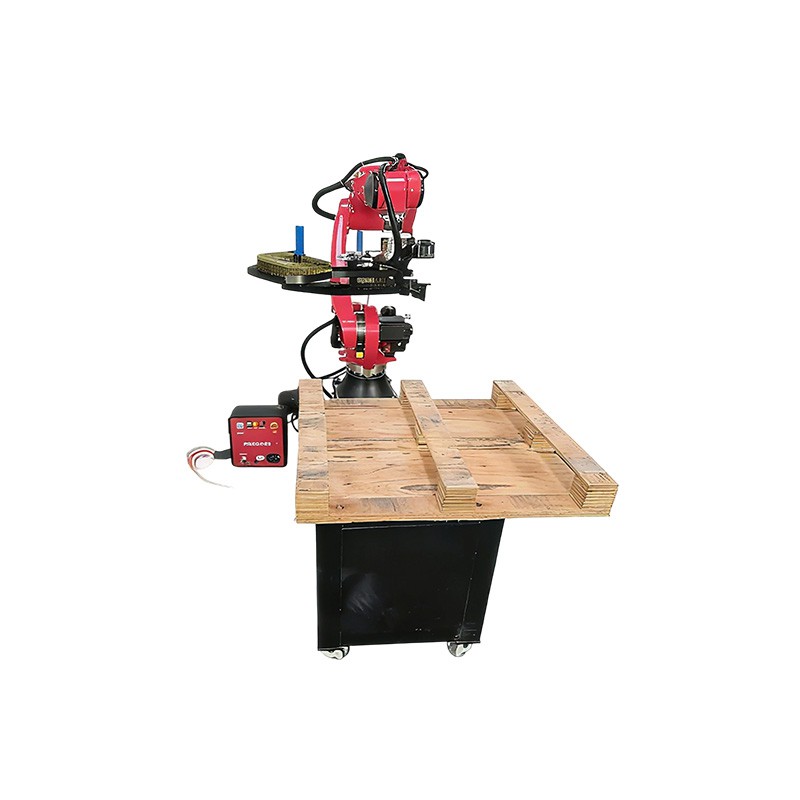

Product Overview

The Pallet Nailing Robot automates the assembly of wooden pallets, performing precise nailing, stacking, and fixture handling. It is designed for high-volume production lines, replacing manual nailing with consistent quality, faster throughput, and reduced labor dependency.
Key Capabilities:

Fully automated nailing of pallet boards
Adjustable for standard EU, US, or custom pallet sizes
Continuous operation for 8–24 hours per day
Integrates with conveyor-fed pallet assembly lines

Highlights

Precision Nailing: ±0.05 mm repeatability ensures uniform nail placement and eliminates misaligned pallets
Labor Reduction: Reduces up to 4 manual operators per line, depending on production volume
Consistent Quality: Minimizes pallet defects and rework
Continuous Operation: Supports 24/7 production without human fatigue
Flexible Integration: Compatible with existing pallet feeding and stacking workflows

Technical Parameters

Parameter Category	Specific Specification
Robot Arm Span	1895 mm
Repeat Positioning Accuracy	+/-0.05 mm
Maximum Load (Payload)	20 kg
Power Capacity	5.87 kVA
Equipment Weight	Approximately 230 kg
Protection Class	Wrist: IP54; Body: IP40
Motion Range (J1 - J6)	J1: +/-155 deg, J2: -140 deg / +65 deg, J3: -75 deg / +110 deg, J4: +/-180 deg, J5: +/-115 deg, J6: +/-360 deg
Max Axis Speed	J1: 110 deg/s, J2: 140 deg/s, J3: 134 deg/s, J4: 273 deg/s, J5: 240 deg/s, J6: 375 deg/s
Mounting & Flange Pattern	Base: 350 x 290 mm (4 x 20 mm thru-holes); End Flange: 8 x M6 (Depth 15 mm)

product-637-538

Typical Production Applications

Application Area	Example Operations	Adaptable Materials
Furniture Manufacturing	Cabinet frame splicing, panel assembly, table/chair structural fastening	Solid wood, engineered wood, and multilayer boards
Packaging Industry	Heavy-duty carton sealing, wooden box assembly, pallet nailing	Corrugated paper, plywood, and solid wood strips
Building Materials	Gypsum ceiling fixing, decorative gusset splicing, light partition wall assembly.	Gypsum boards, PVC gussets, light steel keels

Key System Components

Fixed Elevation Base: Stable foundation minimizes vibration during nailing or panel joining
Robot Electric Control Cabinet: PLC + HMI interface for full control, monitoring, and safety interlocks
Nail Gun & Adjustable Fixture: Ensures accurate nail placement and board alignment; adjustable for different pallet/panel sizes

Integrated Safety Interlocks (Optional): Supports safety fence integration, light curtains, and automatic power cut-off upon cell entry.

product-1600-1261

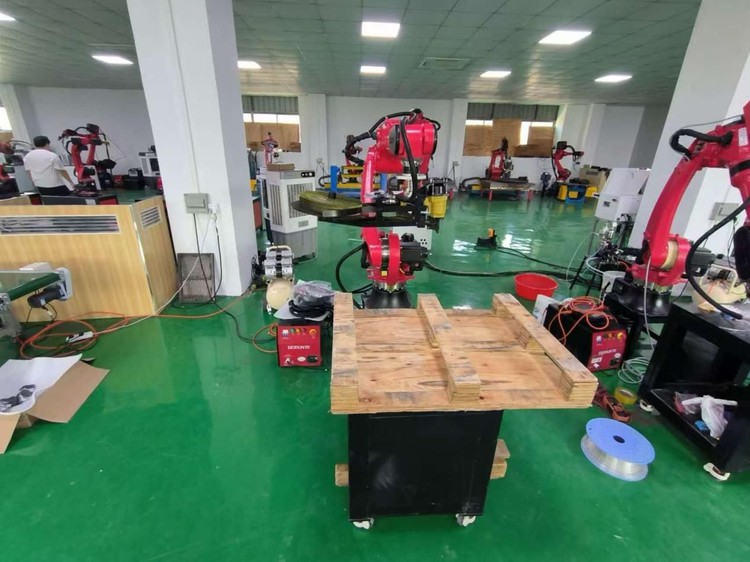

On-Site Simulation and Structural Close-Up Display

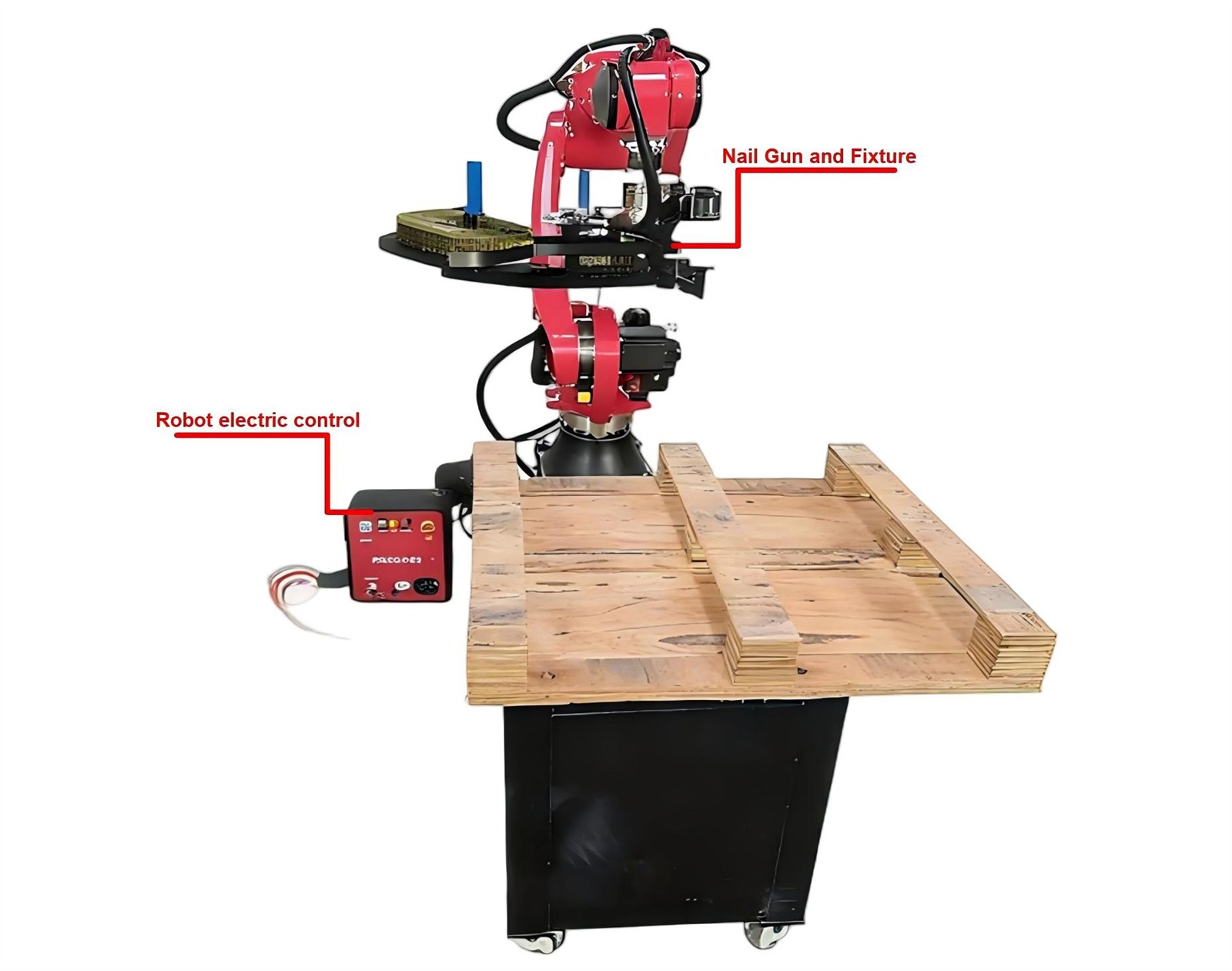

Figure 2.1 On-site Physical Object Diagram

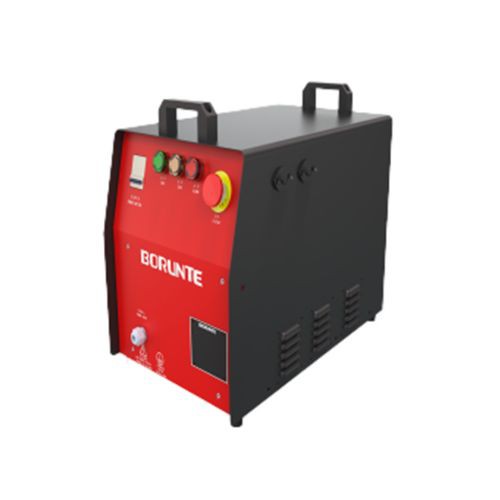

Robot electric control cabinet

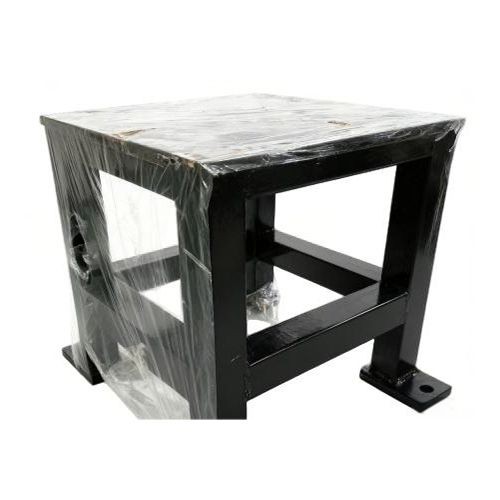

Fixed elevation base for robot

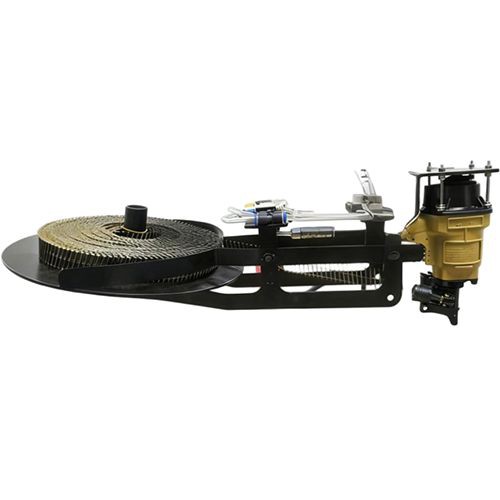

Nail Gun and Fixture

FAQ

Q: Can this system be integrated into an existing assembly line?

A: Yes. The robot is compatible with conveyor-fed assembly lines. Integration depends on available floor space, line layout, and board/pallet flow.

Q: Can one robot handle multiple product types?

A: Yes, end fixtures and nailing logic can be adjusted for different board sizes and pallet types.

Q: How much floor space is required?

A: Typically 6–10 m² per robot, depending on pallet size and line layout. A detailed layout plan can be provided after consultation.

Q: What affects system performance most?

A: Consistent material dimensions, synchronization with upstream feeding, and fixture calibration are critical to maintaining throughput and accuracy.

Q: What is the expected ROI?

A: Depending on line scale, automation can reduce up to 4 operators, improve throughput by 30%, with a typical payback period of 12–18 months.
